- It used to be thought that there are 2 parallel systems controlling voluntary movements in the body. These are;
- Pyramidal system (the corticospinal tract) and
- Extra-pyramidal system (basal ganglia and its connections).
- However, it is now known that this is an oversimplification as these 2 systems work in synergy and there are other systems involved in the control of movement.
- Examples of these other systems are the cerebellum, the brain stem, and the red nucleus.
- Pyramidal tract syndrome results from a disease affecting the corticospinal tract. It produces spasticity and weakness. An example is stroke.
- Extra-pyramidal syndrome results from a disease affecting the basal ganglia. It produces involuntary movement, muscular rigidity, and immobility without paralysis. An example is Parkinsonās disease.
- The BG consists of 5 large subcortical nuclei that participate in the control of movement.
- However, unlike most other components of the motor system, the BG do not make either direct input or direct output with the spinal cord.
- Their primary input is from the cerebral cortex and their output is directed through the thalamus back to the prefrontal, premotor, and motor cortices. This means that the motor functions of the BG are mediated by the frontal cortex.

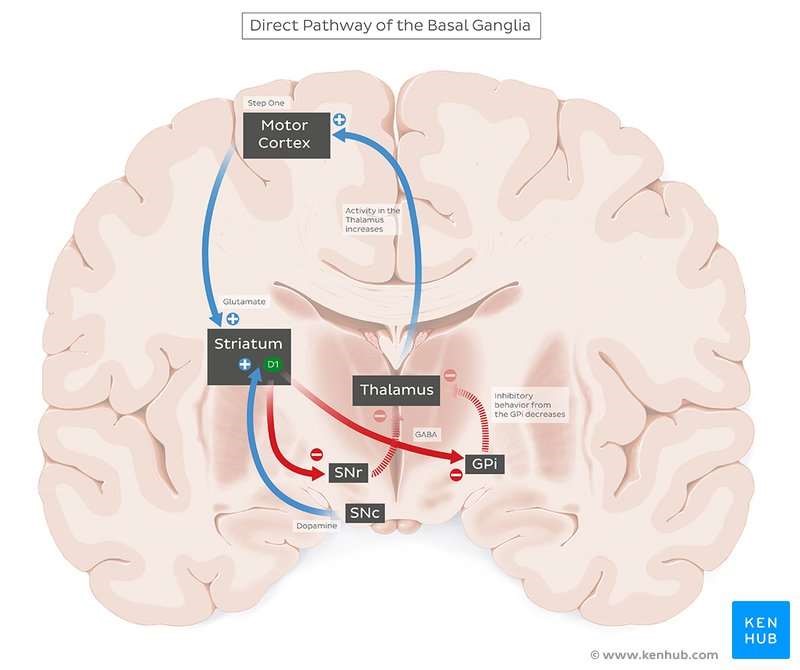

Direct pathway of the basal ganglia
×
Direct pathway of the basal ganglia
The 5 extensively interconnected nuclei that constitute the BG are;
- Caudate nucleus
- Putamen
- The two above forms the Neostriatum or Striatum
- Globus pallidus (internal and external segments)
- Subthalamic nucleus
- Substantia nigra (pars reticulata and pars compacta)

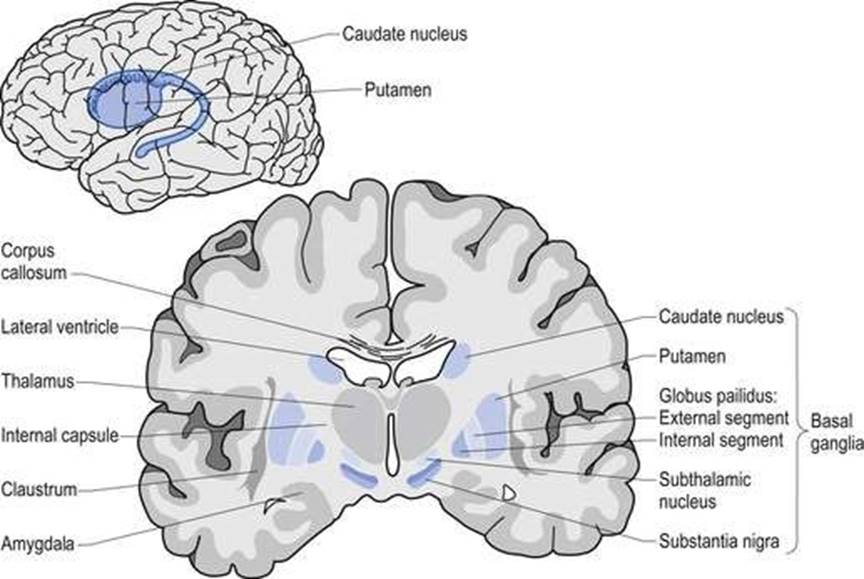

The basal ganglia
×
The basal ganglia
The substantia nigra (SN)
- Lies in the midbrain and has 2 zones (pars compacta (SNc) and pars reticulata (SNr)).
- The SNc has dopaminergic neurons whose cell bodies contain neuromelanin, which is darkish in color. This is the origin of the name substantia nigra (Latin: Black substance).
- The BG constitutes less than 0.5% of the total weight of the brain but contains 80% of the brainās dopamine!
- The striatum (putamen and caudate nucleus) serve as the input nuclei for the BG.
- The globus pallidus and the substantia nigra pars reticulata constitute the major output nuclei.
Substantia nigra
×
Substantia nigra
Disorders of the Basal Ganglia
- Parkinsonās disease: Caused by degeneration of the nigrostriatal pathway.
- Huntingtonās disease: Caused by degeneration of intrastriatal and cortical cholinergic neurons and GABA-ergic neurons.
- Ballism: Caused by damage to one subthalamic nucleus, often due to acute vascular event.
- Tardive dyskinesia: An adverse effect of phenothiazine neuroleptics.
Introduction
- PD is a progressive neurodegenerative disorder associated with a loss of dopaminergic nigrostriatal neurons.
- It is one of the best characterized diseases of the BG.
- It is named in honour of James Parkinson, whose monograph entitled "An essay on the Shaking Palsy", written in 1817, provided an insight into the clinical features of the disease.
Epidemiology
- PD is the 2nd most common neurodegenerative disorder.
- It affects approximately 0.3% of the population and 1-2% of those >60 years.
- An estimated 5 million people throughout the world have the disease.
- Average age at onset is about 60 years.
- With the aging of the population and the substantial increase in the number of at-risk individuals older than 60 years, it is anticipated that the prevalence of PD will increase considerably in the coming decades.
- It is 1.5 times more common in males vs females.
- Lifetime risk of developing PD is 4.4% in males and 3.7% in females.
Pathophysiology
- Symptoms of PD result from loss of dopaminergic neurons in the nigrostriatal pathway.
- The loss of dopaminergic neurons occurs most prominently in the ventral lateral substantia nigra.
- Approximately 60-80% of dopaminergic neurons are lost before the motor signs of PD emerge.
- The major neuropathologic findings in PD are a loss of pigmented dopaminergic neurons in the substantia nigra and the presence of Lewy bodies.
- NB: Presence of Lewy bodies within pigmented neurons of the substantia nigra is characteristic, but not pathognomonic of idiopathic PD.
Neuropathologic findings
×
Neuropathologic findings
Aetiology
- Most cases of idiopathic PD are believed to be due to a combination of genetic and environmental factors.
- At both ends of the spectrum are rare cases that appear to be due solely to one or the other.
- Double hit hypothesis: This suggests that patients might develop PD if they are exposed to a particular toxin and carry a susceptibility gene.
Genetic factors
- Approximately 5-10% of patients with PD have a familial pattern of inheritance.
- To date, linkage has been reported to 11 different genes, with several specific gene mutations having been identified.
| Implicated genes in familial PD | |||
|---|---|---|---|
| Name | Chromosome | Locus | Gene |
| Park 1 | Chr 4 | 4q21ā23 | α-synuclein |
| Park 2 | Chr 6 | 6q23ā27 | parkin |
| Park 3 | Chr 2 | 2p13 | Unknown |
| Park 4 | Chr 4 | 4p15 | Unknown |
| Park 5 | Chr 4 | 4q14ā15 | UCH-L1 |
| Park 6 | Chr 1 | 1p35ā36 | PINK1 |
| Park 7 | Chr 1 | 1p36 | DJ-1 |
| Park 8 | Chr 1 | 12p11 | LRRK2 |
| Park 9 | Chr 1 | 1p36 | Unknown |
| Park 10 | Chr 1 | 1p32 | Unknown |
Environmental factors
- Epidemiologic studies have suggested that a variety of environmental factors might be risk factors for developing PD.
- The most consistent findings have been:
- Rural living, and exposure to well water, pesticides, herbicides, and wood pulp mills.
Paradox!
- There is an inverse relationship between the risk of developing PD and;
- Coffee/caffeine consumption
- Smoking
- The mechanism of this apparent neuroprotection is not known.
Differential diagnosis of Parkinsonism
Parkinsonism could be from;
- Parkinsonās disease
- Primary Degenerative Parkinsonism
- PSP
- MSA
- Striatonigral degeneration (MSA-Parkinsonism)
- Shy Drager syndrome
- Oculopontocerebellar atrophy (MSA- C)
- Corticobasal ganglionic degeneration
- Secondary parkinsonism
- Stroke
- Tumor
- CO
- Manganese
- Neuroleptics
- Wilsonās disease
Benign essential tremor is also a differential diagnosis.
×
Clinical Features
History
- Parkinson disease may have a long premotor phase.
- Mid-life risk factors for the later development of Parkinson disease include constipation, anosmia, daytime sleepiness, and REM behavior disorder (RBD).
- REM behavior disorder is a sleep disorder in which there is a loss of normal atonia during REM sleep.
Motor manifestations
- Onset of motor signs in Parkinson disease is typically asymmetric, with the most common initial finding being an asymmetric resting tremor in an upper extremity.
- About 20% of patients first experience clumsiness in one hand.
- Over time, patients notice symptoms related to progressive bradykinesia, rigidity, and gait difficulty.
- Tremor usually begins in one upper extremity and initially may be intermittent.
- After several months or years, the tremor may affect the extremities on the other side, but asymmetry is usually maintained.
- Tremors may also involve the lower extremities, tongue, lips, or chin.
- The first affected arm may not swing fully when walking, and the foot on the same side may scrape the floor.
- Over time, axial posture becomes progressively flexed and strides become shorter.
- Decreased swallowing may lead to excess saliva in the mouth and ultimately drooling.
- Symptoms of autonomic dysfunction are common and include constipation, sweating abnormalities, sexual dysfunction, and seborrheic dermatitis.
Physical signs
- The 3 cardinal signs of PD are resting tremor, rigidity, and bradykinesia.
- Of these cardinal features, 2 out of 3 are required to make a clinical diagnosis and of the 2, bradykinesia must be present.
- Postural instability (balance dysfunction) is the fourth cardinal sign, but it emerges late in the disease, usually after 8 years or more.
- The characteristic PD tremor is present and most prominent with the limb at rest.
- The usual frequency is 4-6 Hz.
- The tremor may appear as a pill-rolling motion of the hand or a simple oscillation of the hand or arm.
- The same tremor may be observed with the arms outstretched (position of postural maintenance) and a less prominent, higher frequency kinetic tremor is also common.
- Rigidity refers to an increase in resistance to passive movement across a joint.
- The resistance can be either smooth (lead pipe) or oscillating (cogwheeling).
- Cogwheeling is thought to reflect tremor rather than rigidity and may be present with tremors not associated with an increase in tone (i.e., essential tremor).
- Rigidity is tested by flexing and extending the patient's relaxed wrist.
- It (rigidity) can be made more obvious with voluntary movement in the contralateral limb.
- This refers to slowness of movement but also includes paucity of spontaneous movements and decreased amplitude of movement.
- Bradykinesia is also expressed as;
- micrographia (small handwriting)
- hypomimia (decreased facial expression)
- decreased blink rate
- hypophonia (soft speech)
- Postural instability refers to imbalance and loss of righting reflexes.
- Its emergence is an important milestone, because it is poorly amenable to treatment and is a common source of disability in late disease.
- Patients may experience freezing when starting to walk (start-hesitation), during turning, or while crossing a threshold, such as going through a doorway.
- They also have propulsion and retropulsion.
Resting Tremor
Rigidity
Bradykinesia
Postural instability
Investigations
- There is no specific laboratory or neuroradiological investigation for the diagnosis of PD.
- Pathological confirmation is done at post mortem.
- If secondary parkinsonism is suspected, investigation of the primary cause should be done, e.g., serum ceruloplasmin concentration is obtained as a screening test for Wilson disease.
Rating of severity
| Hoehn and Yahr scale | |
|---|---|
| Stage | Description |
| 0 | No signs of dx |
| 1 | Unilateral dx |
| 2 | Bilateral dx, without impairment of balance |
| 3 | Mild to moderate bilateral dx; some postural instability; physically independent |
| 4 | Severe disability; still able to walk or stand unassisted. |
| 5 | Wheelchair bound or bedridden unless aided. |
Treatment
The various forms of treatment are;
- Medical treatment
- Surgical treatment
- Supportive care
MEDICAL TREATMENT
Goal of medical treatment;
- To provide control of signs and symptoms for as long as possible while minimizing adverse effects.
Symptomatic therapy
- Levodopa + peripheral decarboxylase inhibitor (PDI): This remains the standard of symptomatic treatment for PD
- It provides the greatest antiparkinsonian benefit with the fewest adverse effects in the short term.
- However, its chronic use is associated with the development of fluctuations and dyskinesias.
- Example: SinemetĀ® (L-DOPA + Carbidopa).
- Dopamine agonists (e.g., Bromocriptine, Cabergoline, Pergolide, Pramipexole, Ropinirole)
- Provide symptomatic benefit comparable to levodopa/PDI in early disease.
- They lack sufficient efficacy to control signs and symptoms by themselves in more advanced disease.
- They can be used as initial symptomatic therapy in early disease, rather than levodopa/PDI, to delay the onset of motor fluctuations and dyskinesia. This strategy is usually reserved for younger individuals (<65-70 yrs) who are cognitively intact.
- MAO-B inhibitors:
- E.g., Selegiline and Rasagiline
- These provide mild symptomatic benefit, have excellent side effect profiles, and may improve long-term outcomes.
- When the MAO-B inhibitor alone is not sufficient to provide good control of motor symptoms, another medication (e.g., dopamine agonist or levodopa) is added.
- Anticholinergics e.g., Trihexyphenidyl (ArtaneĀ®)
- These have moderate effects on symptom control.
- Their effect may be more felt in those with younger onset, tremor-predominant PD.
- Side effects include dry mouth, constipation, somnolence, and memory impairment. Higher doses may also result in visual hallucinations.
- Amantadine
- This has a mild antiparkinsonian effect.
- Its mechanism of action is unclear.
- Adverse effects include constipation, confusion, and hallucinations.
- COMT inhibitors
- Entacapone
- Tolcapone
Putative neuroprotective therapy
- Neuroprotective therapies are defined as those that slow the underlying loss of dopamine neurons.
- Currently, there are no proven neuroprotective agents.
- Examples of agents that have (and are being) tried are Selegiline and Rasagiline.
SURGICAL THERAPY
Brain stimulation
- Deep Brain stimulation (DBS)
- Thalamic stimulation
- Pallidal stimulation
- Subthalamic stimulation
Lesion surgery
- This involves the destruction of targeted areas of the brain to control the symptoms of PD.
- They have largely been replaced by DBS.
- Examples are Thalamotomy, pallidotomy.
Transplantation
- Fetal nigral cells, sympathetic ganglia, carotid body glomus cells, and neuroblastoma cells, have been studied with varying results.
- Some studies have shown that gene therapy could be effective in modifying the genes involved in PD.
- The role of stem cells in the management is undergoing laboratory trials.
